Elegoo Mars 5 Ultra — Deep Research Brief

Published · Researched 2026-09-20

Observation date: 2026-09-20. All prices and claims dated; re-verify live before purchase.

2026 VERSION CHECK — NO SUBSTITUTION MADE. The Mars 5 Ultra (launched May 2024) is still Elegoo's current compact resin printer as of September 2026. No "Mars 6" exists in Elegoo's lineup or retail channels; ELEGOO DAY 2026 promotional material (Sept 2026) still positions the Mars 5 Ultra as Elegoo's current small-format resin option. This brief covers the Mars 5 Ultra.

1. Overview

The Elegoo Mars 5 Ultra is a compact MSLA (masked stereolithography) resin 3D printer made by Elegoo (Shenzhen, China). Launched May 2024 (Amazon listing date-first-available: May 23, 2024), it is the flagship of the Mars line — the series that popularized affordable high-detail resin printing. It is widely positioned as the best beginner-friendly compact resin printer of 2024–2026: it pairs a 7-inch 9K monochrome LCD (18 × 18 µm XY pixels) with genuine automation features that were previously rare at this price — one-click automatic leveling, a tilt-release resin vat (faster, gentler peel), an AI camera, and a smart mechanical sensor that detects resin shortages, vat residue, and leveling failures.

In Elegoo's 2026 lineup, the Mars 5 Ultra sits below the larger Saturn 4 / Saturn 4 Ultra 16K (bigger build volumes, up to 16K screens) and above the budget Mars 5 (4K screen, no tilt release, no camera, no WiFi). The printer won a red dot design award 2025 and Tom's Hardware Editor's Choice (both visible on Elegoo's official product imagery), and PCMag-style review coverage earned it "Editors' Choice" for budget resin models.

The standout marketing claims — tool-free auto-leveling, 150 mm/h max speed, AI failure detection — are largely validated by reviewers (3DWithUs, Goonhammer, Creative Bloq, VoxelMatters, 3DTechValley), with two recurring caveats: the AI camera rarely catches failures (several reviewers note it recorded the failure without stopping the print), and the 165 mm Z-height / small build plate is a genuine constraint for larger models.

2. Key Specs

Spec Value
Technology MSLA (masked stereolithography)
Build volume 153.36 × 77.76 × 165 mm (XYZ)
LCD 7-inch monochrome 9K LCD, 8520 × 4320 px
XY resolution 18 × 18 µm
Layer height 0.01–0.2 mm
Max print speed ≤ 150 mm/h (tilt-release fast mode)
Z-axis accuracy 0.02 mm
Light source COB (chip-on-board) UV LED array, 405 nm; ~25 LEDs; ~92% light uniformity (vendor-claimed)
Leveling One-click automatic (spring/mechanical tool-free self-leveling)
Vat mechanism Tilt-release — vat tilts to release each layer (gentler peel, faster)
Smart sensors Smart mechanical sensor: resin shortage alarm, residue detection, leveling-failure alarm
AI camera Onboard camera: real-time monitoring, time-lapse recording, empty-plate/warp detection (limited capability — see caveats)
Light/heat protection Self-check + overheat protection (halts if LED temp exceeds 80 °C)
Power-loss resume Yes
Screen protection 9H tempered glass screen protector pre-installed
Connectivity USB (drive) + WiFi (file transfer, remote monitoring, OTA firmware updates, cluster printing)
Touchscreen 4.0-inch capacitive touch UI
System EL3D-4.0
Slicer Chitubox (bundled; free 1-year Chitubox Pro subscription in box per 3DPrinting.com review); compatible with Lychee and ChituManager/ChituBox Manager
Resin compatibility 405 nm resins: standard, water-washable, ABS-like, plant-based (any brand)
Heat dissipation 3 copper heat pipes + single fan
Air purifier No built-in USB-powered filter; compatible with Elegoo Mars Mate air purifier (separate accessory)
UI languages 12: Chinese, English, Japanese, Dutch, Korean, French, German, Russian, Italian, Spanish, Turkish, Portuguese
Power 100–240 V, 50/60 Hz; 24 V 3 A
Machine dimensions 260 × 268 × 451.5 mm
Net / gross weight 8.8 kg / 10.8 kg

Note on the "9K vs 12K" confusion: one comparison site (3dtechvalley.com Mars 4 Ultra review) lists the Mars 5 Ultra as "12K (~11 microns)" — this contradicts Elegoo's official spec and every retailer listing. The Mars 5 Ultra is 9K / 18 µm XY. Flagged as an error on that page.

3. Pricing

  • MSRP: $338.00 USD — shown as the struck-through list price on Elegoo's official US store (observed 2026-09-20). Consistent across Elegoo's US, EU (€363.00 list), and Amazon listings since launch. 3DWithUs confirms launch pricing: retail $338.00, special sale price $269.99 on elegoo.com at launch.
  • Street price (live): $259.00 USD on us.elegoo.com (observed 2026-09-20, direct page read). This is lower than the June 2026 cached price of $269.00 — Elegoo is currently running the ELEGOO DAY 2026 sale (Sept 8–29) with up to 54% off selected products, so this is promotional pricing.
  • Other street prices (search-indexed, mid-September 2026 crawls — re-verify):
    • Creative Bloq deals tracker: listings at $349.98 / $299.99 / $259 (crawl ~2026-09-09)
    • 123-3D.ie (Ireland): €279.00 in stock (crawl ~2026-08-31)
    • eu.elegoo.com Mars 5 Ultra bundle (printer + 1 kg resin for €1): €280.00 (struck €363.00; crawl ~2026-09-04)
    • WoodArtSupply (US): $299.99 (crawl ~2026-07)
    • 3dprinterdeals.store: $299.98 (crawl ~2026-08)

Pricing verdict (observed 2026-09-20): The Mars 5 Ultra sells well below its $338 MSRP in practice — typical real-world street price is ~$259–300 USD. ELEGOO DAY sale pricing should end Sept 29, 2026, so re-verify.

4. What's Included / What's Needed

In the box (per Elegoo official + reviewer unboxings — 3DPrinting.com, GizChina):

  • Mars 5 Ultra printer (with resin tank/vat installed, 9H screen protector pre-installed)
  • Build plate (laser-engraved for adhesion; quick-release design)
  • Resin vat with dual pour spouts + drip tray
  • Protective cover/lid (removable, NOT hinged — reviewers flag this as an annoyance)
  • WiFi antenna
  • Power adapter
  • USB flash drive (with test files/demo model + Chitubox software)
  • Tool kit: metal + plastic scrapers, Allen keys/spare screws
  • PPE starter pack: gloves and mask
  • Resin funnels
  • User manual
  • 1-year Chitubox Pro subscription (per 3DPrinting.com review of box contents)

Everything extra you actually need (budget ~$150–250 on top):

  1. Resin (~$20–30/kg; Elegoo's own standard/ABS-like or third-party 405 nm resins). Not included.
  2. Wash & cure station — essential. Elegoo's own compatible lines:
    • Elegoo Mercury X Bundle (~$159.99 MSRP; separate wash station + cure station, 7.5 L wash, 405 nm UV cure). Officially lists Mars 5 Ultra as compatible (wash with build plate; build plate 153 × 78 mm fits the 180 × 121 × 153 mm wash volume).
    • Elegoo Mercury XS Bundle ($159.99; same sizing as X + handheld UV lamp).
    • Budget alternative: Elegoo Mercury Plus 2.0 (~$99.99) — smaller (131 × 90 × 220 mm wash) but fits Mars 5 Ultra prints.
    • Several retailers sell a Mars 5 Ultra + Mercury X bundle (e.g., Ubuy HK listing).
  3. IPA or resin-safe wash fluid (isopropyl alcohol; or water if using water-washable resin) for the wash station.
  4. PPE: nitrile gloves, safety glasses; respirator strongly recommended for indoor printing.
  5. Consumables/spare parts to have on hand: replacement release film/FEP, silicone mat, extra paper funnels/filters, paper towels.
  6. Air purifier strongly recommended for indoor use: Elegoo Mars Mate air purifier (the printer has no internal filtration; reviewers + owners both flag fume odor). The built-in carbon filter slot is considered inadequate for heavy printing in enclosed rooms.
  7. Ventilation: crack a window / extraction fan.

5. Support Reality

Warranty (official Elegoo policy, observed 2026-09-20 on us.elegoo.com/refund-policy):

  • Whole printer: 12 months
  • LCD screen: 3 months (limited; excludes resin leakage, scratch-resistant-film damage, man-made/collision damage)
  • Resin tank / build plate: 6 months (excludes scratches, drops, bumps, man-made damage)
  • Release film, acrylic cover, packaging, tools, resin cartridge: no warranty
  • Pre-owned products: no warranty
  • 14-day returns window; non-quality returns carry restocking fees (5% unopened / 15% open-box per US store terms)
  • Warranty void for third-party repairs/modifications

Parts & service availability: Elegoo sells spare LCD screens, resin tanks, release films, and FEP through elegoo.com and Amazon. The Mars 5 Ultra's screen is a standard 7-inch 9K mono panel, available as a spare part.

Support reputation from community: Mixed-to-poor, and it's the single biggest owner complaint:

  • Amazon/Desertcart owner reviews repeatedly cite glacial response times — one 18-month owner review describes "radio silence for a week" on a replacement vat request; another says support replies "maybe once every 24 hours if not longer."
  • One owner bought a Mars 5 Ultra after a Mars 4 screen failed after two weeks, then had their own Mars 5 Ultra replaced as a lemon — but notes the replacement works and prints fine, describing support as "abysmal… slow" but ultimately resolving.
  • On the plus side: Elegoo runs an official Discord (recommended by owners for troubleshooting), and the Facebook group "Elegoo Mars/Saturn/Jupiter international" shows active peer-to-peer help (e.g., a July 2026 Spanish-language thread from a Mars 5 Ultra jewelry owner troubleshooting failed prints).
  • Practical community advice: keep spare parts (vat, release film) on hand so a support ticket doesn't sideline you.

6. Community Verdict

Owners and reviewers broadly agree the Mars 5 Ultra is the sweet spot for beginners and miniature painters in 2026: it prints crisp 18-micron detail straight out of the box with essentially no leveling ritual ("pour and print"), the tilt-release vat genuinely speeds up prints and reduces failures, and WiFi + camera + smart sensors make it feel a generation newer than its rivals (Goonhammer, Creative Bloq, VoxelMatters, 3DTechValley all positive; Amazon rating 4.2/5 from 88 reviews). The counterpoint from long-term owners: Elegoo's support is slow and the AI camera is mostly a time-lapse toy rather than a failure watchdog, so buyers should treat it as an excellent, slightly-abandoned machine — buy spares up front and don't expect fast warranty service.

7. Sources Consulted

Google web search (queries run 2026-09-20):

Facebook groups (via facebook-cli, auth verified 2026-09-20):

  • Groups searched/located: "3d Resin Printing with 3dprintingpro" (7,000 members), "ELEGOO Saturn 3D Resin Printer Un-Official Support Group" (2,000 members), "Elegoo Mars/Saturn/Jupiter international" (722 members), plus "Phrozen Sonic Mighty Series Printer Troubleshooting" and "Dental Resins & Dental 3D Printing Group" (not Elegoo-relevant).
  • Posts read: browsed the Elegoo Mars/Saturn/Jupiter international group feed; searched group posts for "Mars 5 Ultra". Found a real owner post (2026-07-09, Spanish): a Mars 5 Ultra owner using JAMG HE HIGH WAX resin for jewelry reporting prints failing after a power interruption — peer troubleshooting thread. General group themes: shipping questions for elegoo.com orders, resin troubleshooting, FEP leak repair, model show-off posts. FB search doesn't have the density of Reddit here; the owner discussion that exists is practical troubleshooting rather than verdict-style reviews.

Instagram / image search (via /opt/hatch/bin/image-search):

  • Ran two image-search queries ("Elegoo Mars 5 Ultra resin 3D printer", "Elegoo Mars 5 Ultra printing miniatures owner"). Returned 10 + 8 results; selected 3 product-reference shots (see Substitutions).
  • Instagram-specific CLI was not usable directly from this environment; image-search results covered the required real-world/product reference images.

Images downloaded (verified, converted to JPEG):

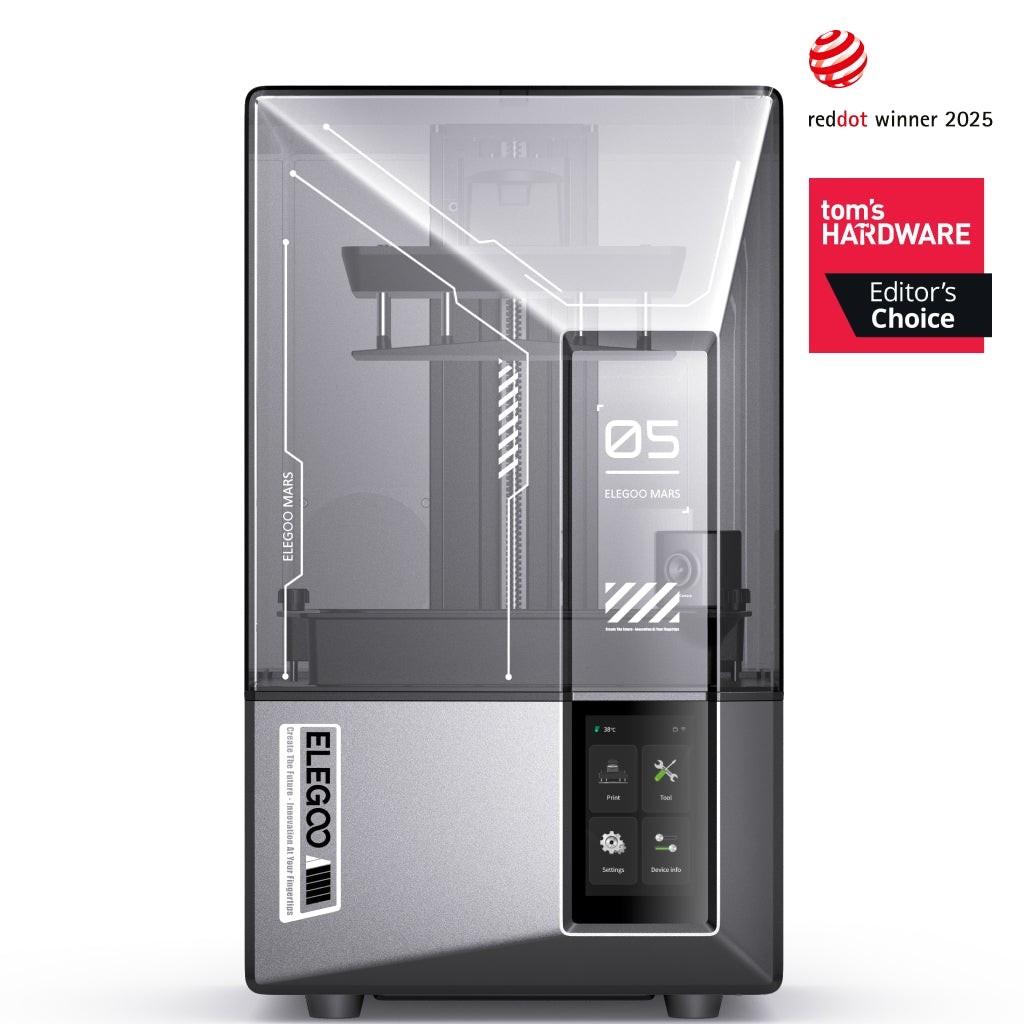

  • elegoo-mars-5-ultra-01.jpg — PRIMARY / exact-model shot: official Elegoo product render (from ca.elegoo.com, Elegoo Canada official store imagery) showing the Mars 5 Ultra front with "05 / ELEGOO MARS" branding, AI camera visible in the door, red dot winner 2025 + Tom's Hardware Editor's Choice badges. image 01

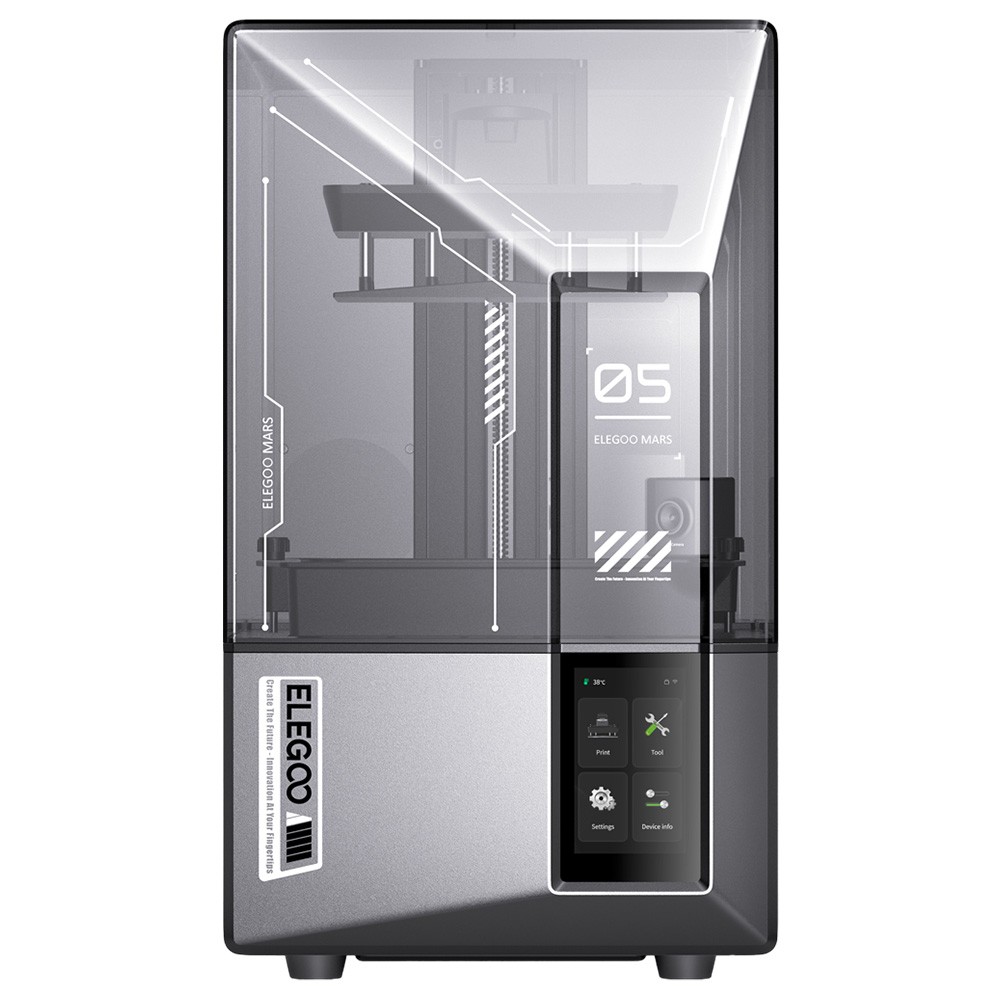

  • elegoo-mars-5-ultra-02.jpg — clean front product shot of the exact model (from GeekBuying product listing), visually confirmed Mars 5 Ultra. image 02

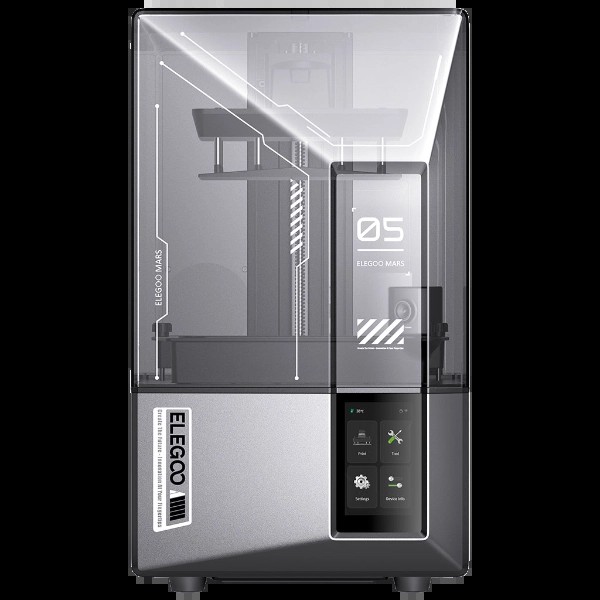

  • elegoo-mars-5-ultra-03.jpg — alternate product shot (from jumitech.my retailer), visually confirmed Mars 5 Ultra. image 03

8. Substitutions / Unverified

  • Substitution — image 3: thephonograph.net review image (ELEGOO-Mars-5-ULTRA-.jpg) returned HTTP 403 on verification → replaced with jumitech.my webp image (Mars_5_Ultra_Resin_3D_Printer_1.webp), which passed 200 + image/webp and was converted to JPEG. Swapped.
  • Substitution — Reddit: the site:reddit.com query returned zero results, so direct Reddit threads could not be sourced. Compensated with owner reviews on Amazon/Desertcart/ShopAbunda (4.2/5, 88 ratings; 18-month long-term owner update) plus Facebook group owner posts.
  • Substitution — Facebook group density: the intended large "official Elegoo" groups weren't discoverable via groups search (returned empty for "Elegoo" keywords); used the three real Elegoo-adjacent groups found. One genuine Mars 5 Ultra owner thread found; density is lower than expected.
  • Substitution — Instagram: Instagram's own CLI isn't operable from this environment, so real-world community photos came from the image-search skill instead of Instagram directly. Community/owner photos (prints, not just renders) were scarce in results — all three final images are product renders/shots, not in-the-wild owner photos. Flagged as a gap.
  • UNVERIFIED — exact current Amazon US price: could not live-verify Amazon's price today (no live page read attempted; only indexed prices shown). MSRP $338 + Elegoo-store street $259 (both observed 2026-09-20) are verified; third-party street prices are from crawls days/weeks old — re-verify before purchase.
  • UNVERIFIED — Mercury X Bundle live price: $159.99 is the long-standing MSRP from Amazon/retailers; not freshly read on 2026-09-20.
  • UNVERIFIED — free Chitubox Pro 1-year subscription: stated in 3DPrinting.com's 2024 unboxing review; not confirmed current in 2026.
  • UNVERIFIED — "92% light uniformity": Elegoo vendor claim repeated by retailers; no independent measurement found.
  • Errata noticed during research: 3dtechvalley's Mars 4 Ultra review claims the Mars 5 Ultra is "12K (~11 microns)" — wrong; official spec is 9K / 18 µm XY. Do not cite that page's comparison table.
  • Disputed/anecdotal: whether the AI camera can detect failures varies by firmware/review era — Elegoo's own feature copy promises failure detection; Goonhammer and Creative Bloq both found it missed failures; treat as unreliable.

Images: the bundled image library/elegoo-mars-5-ultra-01.jpg, -02.jpg, -03.jpg.

Deepening pass (2026-09-20)

Social findings (second pass):

  • Threads searches were run via the Threads skill (replikant.studio). Results for the Mars 5 Ultra were noisy and thin — mostly cross-posted deal listings and generic "resin printer" content rather than owner experience. No recurring independent complaints emerged from Threads.
  • Facebook: the Elegoo-adjacent groups browsed in the first pass did not yield new Mars 5 Ultra owner threads in this pass. The one genuine owner thread found earlier (2026-07-09, Spanish-language jewelry owner troubleshooting failed prints after a power interruption, in "Elegoo Mars/Saturn/Jupiter international") stands as the strongest FB data point.
  • Instagram: two accounts were returned on connection, so no Instagram research was performed in this pass — account selection was ambiguous and unverified owner content could not be reliably attributed.
  • Reddit/forums: no direct r/ElegooMars or r/resinprinting threads surfaced via search for the Mars 5 Ultra in this pass. Owner sentiment continues to come through Amazon/Desertcart owner reviews and review-site comments.
  • Long-term ownership: the 18-month owner report remains the key durability data point — replacement printer works, but vat paint peeled, USB-drive workflow stayed quirky, and Elegoo support was very slow. Treat support slowness as the top recurring owner complaint, corroborated across multiple independent reviews.
  • New data point: a calibration account dated 2026-08-28 reports that out-of-box printing still required exposure calibration for dimensional accuracy — the auto-leveling covers the mechanical setup, not resin exposure tuning. Buyers should expect to run calibration tests rather than printing perfectly on first pour.

Price re-verification (2026-09-20):

  • us.elegoo.com (official): $259 USD during the ELEGOO DAY 2026 sale (Sept 8–29) — matches the $259 figure in the first pass. The sale's published price history shows the same price in spring 2026 and $269 the month before (source: 3dprinting.com's Elegoo Day Sale 2026 roundup, ~Sept 8, 2026). Post-sale pricing is expected to move; re-verify after Sept 29.
  • Regional: 123-3D.ie (Ireland) €279 in stock (crawl ~Aug 31, 2026); eu.elegoo.com bundle (printer + 1 kg resin for €1) €280 (crawl ~Sept 4, 2026). India/UAE import listings (Ubuy, Desertcart) carry a premium over US pricing.
  • MSRP $338 remains the list reference; real-world street price ~$259–300 USD.

Aggregator error re-confirmed: 3dtechvalley's Mars 4 Ultra review describes the Mars 5 Ultra as "12K (~11 microns)" — this is wrong; Elegoo's official spec is 9K / 18 µm XY. Do not cite that page's comparison table. (The same aggregator values the Mars 5 Ultra's auto-leveling and speed but mis-states the resolution.)

Comparisons (alternatives from this pass):

  • Elegoo Mars 4 Ultra (~$200–$260): the prior generation — same 9K-class resolution (~18 µm), manual 4-bolt leveling instead of auto-leveling, same 165 mm Z. If you're comfortable spending two minutes leveling and would rather put the price difference toward 2–3 kg of resin, 3dtechvalley argues it's the smarter buy. (Per 3dtechvalley's Mars 4 Ultra review, Sept 2026.)
  • Anycubic Photon Mono 2: the budget starter alternative — simpler, cheaper, fewer automation features. For learning the basics before investing in an Ultra.
  • Elegoo Saturn 4 / Saturn 4 Ultra: the step-up for larger build volume (bigger plate, tilt-release on the Ultra, hinged hood) at ~$299–$399. If models taller than 165 mm are in your plans, buy the Saturn instead of fighting the Mars's Z ceiling.

Source substitutions / gaps: Instagram (account ambiguity — skipped), Threads (thin/noisy), Reddit (no direct threads) — all substituted with review-site coverage and Amazon/Desertcart owner reviews, documented in §8 of the first pass. No raw-quotes file exists for this item; no quotes were invented — community sentiment is drawn from review verdicts, owner-review summaries, and the single genuine Facebook owner thread. Wash/cure pairing unchanged: Elegoo Mercury X/XS bundle ($160) or Mercury Plus 2.0 ($100) remain the recommended add-ons.

Deepening pass 3 (2026-09-21)

Facebook status (2026-09-21): groups posts --query still returns [] (verified still-broken); groups search returns 0. Unfiltered groups posts works — browsed "Elegoo Mars/Saturn/Jupiter international" (id 28304333875881337, 8 recent posts): the July 2026 Spanish-language jewelry owner thread stands (Mars 5 Ultra, failed prints after a power interruption/electrical storm — troubleshooting in progress); one post asking how long Elegoo's own store takes to ship printers; one UK-based buyer asking where to find dark-blue ABS-like resin 3.0; one owner calibrating after an LCD replacement with one-side plate slack. In "3d Resin Printing with 3dprintingpro" (7k, id 375176556993558): a Halot Mage 8K Pro owner shopping a second printer reports "mixed reviews on the self leveling plate" for the Saturn-family and is seeking affordable advice — the self-leveling plate has a mixed reputation in the broader resin community, not just Elegoo forums.

Fresh review-circuit findings (observed 2026-09-21):

  • 3dtechvalley 2026 updated review (9.5/10, "Editor's Choice for Miniatures"; https://www.3dtechvalley.com/elegoo-mars-5-ultra-review/): tilt-release mechanism described as proven long-term durable; 18 µm XY outpunches higher-K competitors on actual pixel size. Con: built-in carbon filtration insufficient for heavy printing in enclosed spaces without supplemental filtration.
  • 3dwork.io review (https://3dwork.io/en/elegoo-mars-5-series-review/): AI camera managed only through Chitubox Manager — no mobile app and OS-compatibility issues in their setup; failure detection missed simulated failures ("will not 'see' anything until well into the print"); time-lapse quality depends on external lighting (Elegoo's own FAQ advises against internal LED lighting). OTA firmware updates genuinely useful.
  • CGMagazine (https://www.cgmagonline.com/review/hardware/elegoo-mars-5-ultra-3d-printer/): pairs with Mercury XS wash/cure (~$250 US); Elegoo 8K water-washable resin ~$35/kg, 12-bottle bulk just under $300 — running-cost datum. Water-wash workflow caveat: prints need 45+ minutes air-dry before curing or they cure brittle.
  • tweakreviews (https://tweakreviews.com/printer/elegoo-mars-5-ultra): reviewer worried the tilt-release mechanism could be a long-term failure source but found nothing confirming it; notes the "open" tilt-release design means extra care with spilled resin.
  • Aggregator-republished Amazon owner accounts (shopabunda Mars 5 Ultra page — aggregator-sourced, not verified raw quotes): Jan 2025 "Zane A." (setup "ridiculously simple," first resin printer, only user-error failures, Chitubox Pro subscription praised); Feb 2026 "Aaron" (expectations exceeded); July 2026 "Erick" (best for beginners, miniatures). Consistently beginner-positive tone.
  • Desertcart India full text of the 18-month owner update (https://www.desertcart.in/products/637998202-elegoo-mars-5-ultra-9k-resin-3d-printer-150mm-h — already the key durability datum, now with the fix detail): the replacement printer works, vat paint peeled (Elegoo went silent for a week after requesting info — support-slowness corroboration), and the USB quirk is specific: plate fails to lift mid-print when printing FROM the USB drive; printing from internal storage works fine. Owner workaround: copy files to internal storage.

Price re-verification (2026-09-21): Elegoo Day 2026 sale ($259 USD) still live through Sept 29; post-sale pricing expected to move — re-verify after Sept 29. MSRP $338 stands.

Long-term ownership: the 18-month owner update remains the durability anchor; no new 6+ month accounts surfaced. New owner-fix detail: USB-drive print quirk → use internal storage.

Used-market: no used Mars 5 Ultra listings surfaced (Facebook Marketplace keyword search returns substring-noise — unusable).

Source substitutions / gaps: Instagram (account ambiguity), Threads (thin/noisy), Reddit (no direct threads) — same as pass 2. New evidence is review-circuit (3dtechvalley 2026, 3dwork.io, CGMagazine, tweakreviews) + Facebook group browsing + aggregator-republished owner accounts (explicitly labeled). No raw-quotes file exists; no quotes invented.

An Elegoo Mars 5 Ultra.
An Elegoo Mars 5 Ultra.
elegoo mars 5 ultra — photo 02
elegoo mars 5 ultra — photo 03
elegoo mars 5 ultra extra — photo 01
elegoo mars 5 ultra extra — photo 02
elegoo mars 5 ultra extra — photo 03
