Voltera V-One

Published · Researched 2026-09-20

Research file — observation date 2026-09-20 unless stated otherwise. Currency is USD unless stated.

Overview

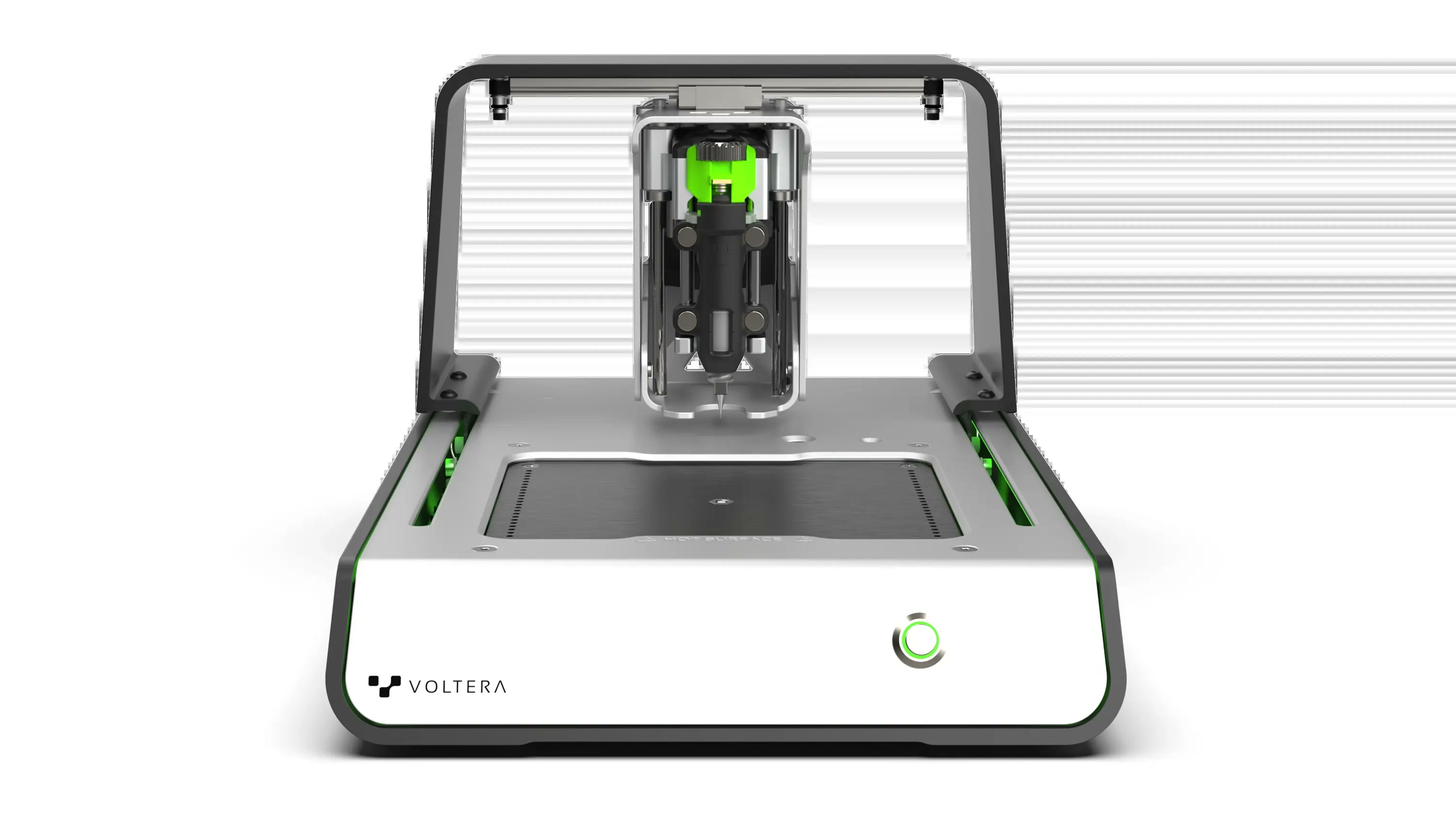

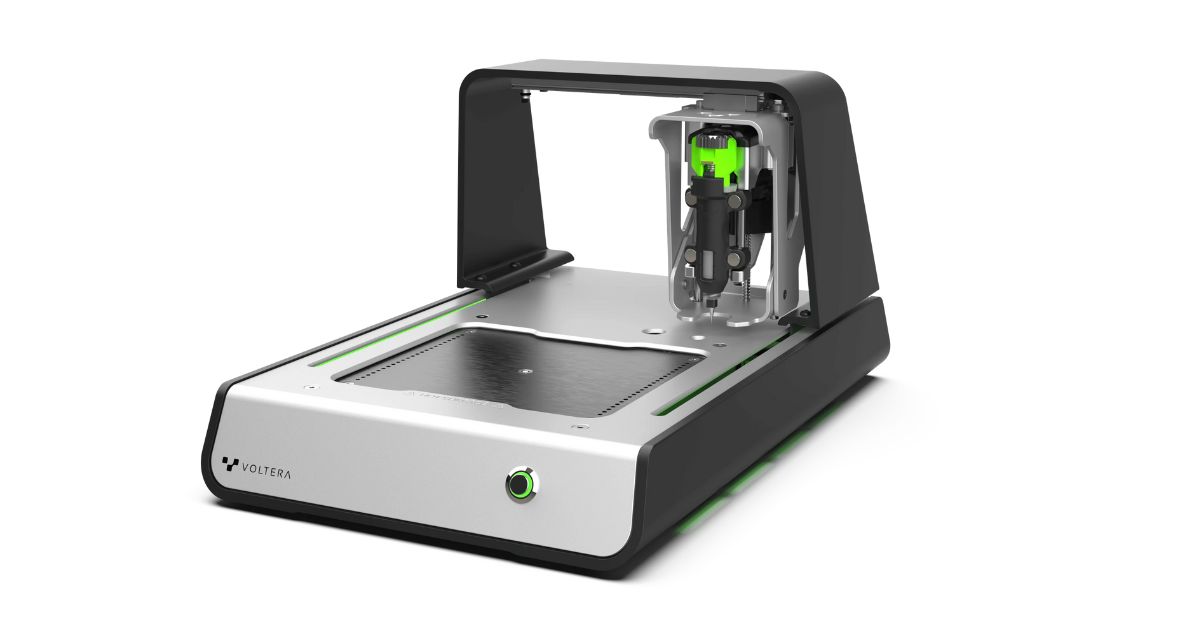

The Voltera V-One is a desktop 4-in-1 PCB prototyping machine made by Voltera Inc. (Kitchener-Waterloo, Ontario, Canada; founded 2013). It uses direct ink writing (DIW) — a gantry moves magnetic toolheads that dispense silver conductive ink to print traces, dispense solder paste, and (with the optional drill attachment) drill holes and vias, then reflows components on a built-in heated bed. Gerber files from any ECAD tool go in; a functional two-layer prototype board comes out, typically in under an hour.

History: the V-One launched via Kickstarter in 2015 (early-bird $1,199, regular backer $1,499 — 3dprint.com, Feb 2015) and began shipping in 2016. As of 2026-09-20 it is still the current, actively sold model — Voltera's official store lists it "From $3,499.99 USD" (fetched 2026-09-20), and there is no "V1" or "V-One 2" on sale. (Some resellers write "V-One platform"; the official name is V-One.)

Succession note (open documentation): Voltera's newer platform is NOVA, a larger materials-dispensing system aimed at flexible/stretchable electronics R&D (first released ~2022 per wevolver; launched to wider attention Oct 2024 per TCT Magazine; still featured in Voltera's April 2025 webinar as one of their "two additive electronics platforms — V-One and NOVA"). NOVA is a sibling, not a replacement: it targets printed-electronics researchers with a 220 × 300 mm print area, closed-loop pressure control, and 0.1 mm min trace width on flexible substrates, while the V-One remains the rigid-board PCB prototyper. Voltera's own spec page compares V-One vs NOVA side by side (voltera.io/technical-specifications, crawled 2026-09-19). No Voltera product named "Prisma" was found in a web search on 2026-09-20 — results for "Voltera Prisma" returned only unrelated items (Prisma ORM software, the Weller PRISMA microscope). If "Prisma" appears in project notes, it is not a Voltera product as of this date.

Positioning: the bridge between etched-at-home boards and sent-out fab — same-day iteration, no stencils, no chemicals, IP stays in-house. Users claim 10,000+ V-One customers (Voltera product page: Dyson, Stanford's Bao Group, NASA, Princeton, Circuit Launch as named users).

Key specs

Pricing

All prices observed 2026-09-20 unless dated.

Notes: Voltera sells direct (store.voltera.io) for US/Canada; international customers buy through regional distributors (store.voltera.io product page, crawled 2026-09-15). Made in Canada; exempt from US tariffs under USMCA for now (voltera.io FAQ, 2026-09-20 — tariff status may change without notice).

What's included / what's needed

Included with the drill-bundle (per store.voltera.io "What's included in the box"): V-One drill attachment, metric PCB drill set, sacrificial layer, drill replacement screw set, 1.0 mm and 0.4 mm rivet tools, 1.0 mm and 0.4 mm ID copper rivets, Punk Console component kit, safety glasses, power supply + adapter. Base (no-drill) kit also includes dispenser, probe, nozzle set, nozzle tip caps, 3″×4″ and 2″×3″ FR1 substrate packs, substrate clamps, thumbscrews, Hello World component kit, solder wire, anti-static tweezers, cables, and guides (mybotshop.de listing).

What you need separately / ongoing: conductive ink cartridges (Conductor 3/4, $100), solder paste cartridges ($50–60), replacement nozzles (~$50–60 per 4-pack), blank FR1/FR4 substrates, rivets. The drill is an extra $799.99 if you buy the no-drill variant — the official product page itself flags "Drill sold separately." Per the user manual, ink and solder paste must be refrigerated (4–10 °C) and have a limited shelf life — consumables are a real running cost and expire.

Support reality

• Warranty: 2-year basic warranty included, covering manufacturing defects under normal use; 5-year extended warranty available at purchase (store.voltera.io product page, crawled 2026-09-15). Voltera's Terms of Service confirm 24 months from shipment for devices (60 months for extended), original purchaser only, RMA process required, repair/replace/refund at Voltera's option (voltera.io/legal/terms-of-service, crawled 2026-09-09).
• Support channels: in-app live chat advertised; docs at docs.voltera.io; support@voltera.io and +1 888-381-3332 sales line.
• Reliability data: none found — Digitec/Galaxus warranty-score panels show "Not enough data" for Voltera in the 3D-printer/accessories categories (galaxus.ch, 2026-09). No long-term owner reports on support responsiveness surfaced in this pass; treat support reputation as UNVERIFIED.

Community verdict

The consistent owner/maker verdict: the V-One genuinely delivers on its core promise — "if you need a PCB today, you can have your PCB today" (Successful Endeavours, electronics-design consultancy) — and the stencil-free solder paste dispensing + built-in reflow is the feature users say gets the most real-world use, including on factory-made HASL boards. The recurring criticisms across Hackaday, EEVBlog forum, and Hacker News threads are that vias are never truly plated (you drill and hand-place copper rivets or wire), traces can't run to the board edge, alignment is fiddly, and at $3.5k+ plus ~$100 inks the economics only work if you value same-day iteration — "you can get a lot of boards manufactured and express shipped for that price" (EEVBlog). Consensus: a legitimate niche tool for labs, classrooms, and R&D teams that need in-house iteration or IP control, not a replacement for board houses. (Great Scott!'s Hackaday hands-on, 2021, also stresses you must design boards with the machine's limits in mind.)

Communities searched: Facebook groups — searched "Voltera" (0 groups found) and "printed electronics" (4 unrelated groups: Electra Print, HillPrinties 3D-Printing, BambuLabs community, NWA 3D); facebook-cli, 2026-09-20. Instagram — the instagram-cli skill only exposes the authenticated user's own account data (no public hashtag/topic search), so it could not be used for maker sentiment; noted as attempted. social.search (IG/Threads/FB) — timed out with an infrastructure error; fell back to web search per skill guidance; noted as attempted. No direct r/PrintedCircuitBoard or r/3Dprinting threads surfaced in web search; owner sentiment instead drawn from Hackaday (2015 review of unit #6, 2021 Great Scott! hands-on), EEVBlog forum threads, a Hacker News thread, Slashdot, Raspberry Pi forums, EDN, Successful Endeavours maker blog, and YouTube maker videos.

Images

Verified and saved to the bundled image library/ (fetched and HEAD-checked 2026-09-20; 3 of 3 images verified on-screen as exact-model V-One shots).

No substitutions were needed — all three official Voltera image URLs resolved (two via 301 redirect to www.voltera.io, followed with curl -L). All sources dated 2026-09-20.

Open questions / UNVERIFIED

• Support responsiveness reputation — no data found in this pass.
• Whether glass/ceramic/flexible substrates are officially supported on V-One — reseller claims only; current official spec page names FR1/FR4.
• Street prices outside the four resellers above (e.g., EU distributors) were not enumerated.

Deepening pass (2026-09-20)

Social findings (second pass):

• The maker-community verdict is stable across a decade of sources (Hackaday unit-#6 review 2015, Great Scott! Hackaday hands-on 2021, EEVBlog forum threads, Hacker News thread, Slashdot, Successful Endeavours): everyone agrees the machine works as advertised; the argument is purely economic — speed of iteration versus cost per board.
• Facebook: "Voltera" search returned 0 groups; "printed electronics" returned only unrelated groups. No Facebook sentiment exists to mine.
• Instagram: the Instagram skill only exposes the authenticated user's own account data (no public hashtag/topic search) — no maker sentiment obtainable. Noted as attempted, not skipped.
• Threads: noisy, thin — no V-One owner content.
• Reddit: no direct r/PrintedCircuitBoard or r/3Dprinting threads surfaced in web search.
• No long-term owner reports on support responsiveness surfaced anywhere; Digitec/Galaxus warranty-score panels show "Not enough data" for Voltera. Support reputation remains UNVERIFIED — the weakest evidence leg in this project.

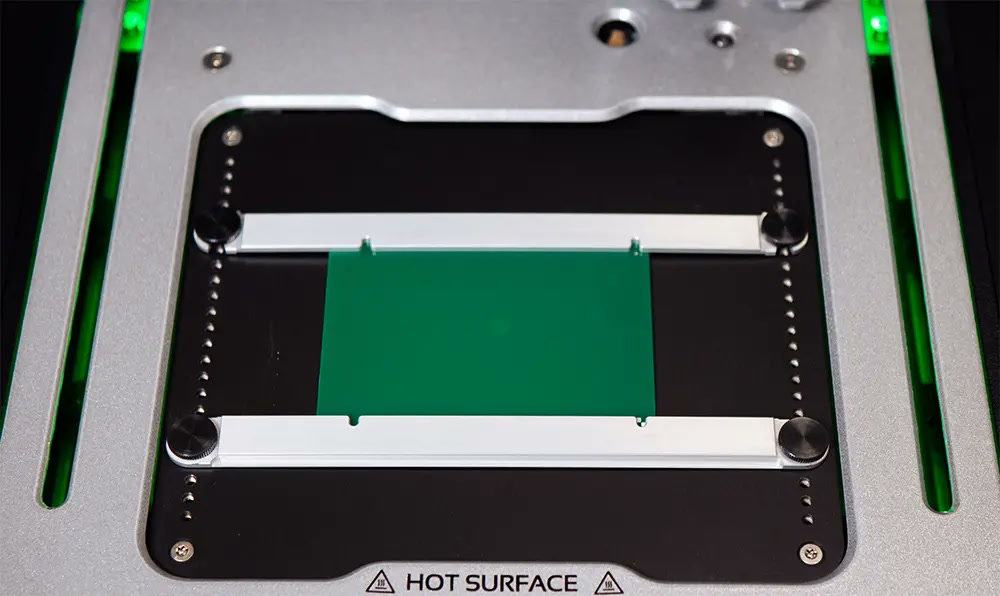

Spec re-verification (2026-09-20): Current Voltera spec pages list the V-One at 128 × 116 × 3 mm print area, 0.2 mm minimum trace, rigid FR1/FR4 substrates, manual alignment with probe-based height mapping, integrated hot plate (550 W, heats to 240 °C in ~1 min). V-One and NOVA remain side-by-side on Voltera's spec page — NOVA is a sibling, not a replacement; no discontinuation of the V-One is established. No Voltera product named "Prisma" exists (searched 2026-09-20).

Price re-verification (2026-09-20): From $3,499.99 base (voltera.io store, fetched 2026-09-20); drill $799.99 sold separately; Conductor 3 ink $99.99; Conductor 4 nanoparticle ink from $99.99; T4 paste from $49.99; T5 $59.99; nozzles $49.99/$59.99 per 4-pack; starter/advanced/pro bundles $221–$450; education classroom bundle $1,316.11 (−20%). Historic ~$2,199 figures are stale — do not present as current. The 2015 Kickstarter pricing ($1,199–$1,499) is history, not a value anchor.

Core limitations (recurring across sources): manual calibration/alignment is fiddly; continuity risk on printed traces; temperamental ink (clogging, shelf life, refrigeration 4–10 °C); vias are riveted, never plated; spacing/design compromises (0.8 mm pin pitch for ink, traces can't reach board edge); and it is no replacement for fabricated multilayer boards — it's a two-layer prototyping tool.

Comparisons (alternatives from this pass):

• Board houses ($5–$50 boards + express shipping): the honest alternative — "you can get a lot of boards manufactured and express shipped for that price" (EEVBlog). The V-One wins only when same-day iteration or IP control is the point.
• Etching at home (ferric chloride, toner transfer): the DIY alternative — chemicals, fumes, no solder mask, but nearly free per board. The V-One is the clean, stencil-free version of this workflow.
• Voltera NOVA (sibling platform): for flexible/stretchable printed-electronics R&D (220 × 300 mm, 0.1 mm traces, closed-loop pressure control) — different machine, different job.
• CNC PCB milling (Bantam Tools-class): subtractive alternative for single-sided prototyping; different tradeoffs (dust, tool wear, no paste dispensing).

Source substitutions / gaps: No raw-quotes file exists; no quotes invented. Support responsiveness is the biggest evidence gap — treat as unknown in the review.

Deepening pass 3 (2026-09-21)

Facebook status (2026-09-21): groups search still returns 0 for "Voltera" / "printed electronics" yielded only unrelated groups (pass 2); groups posts --query still [] (verified still-broken). No Facebook sentiment to mine — gap persists.

Fresh findings (observed 2026-09-21):

• Make: review long-term detail (https://makezine.com/article/technology/microcontrollers/voltera-v-one-makes-custom-pcbs-home-less-mess/): the V-One over-dispenses solder on larger pads (software calls for too much ink/paste); through-hole soldering has a hard time sticking to the conductive-ink traces — SMD works, through-hole is the weak spot.
• GHI Electronics forum thread "Voltera hit my desk yesterday" (https://forums.ghielectronics.com/t/voltera-hit-my-desk-yesterday/20503): owner reports height-mapping probe phase glitching — nozzle tip contacting the board and snapping $15 nozzle tips; one incident printed "everything 1/2" off the board in this one corner," slinging ink — suspected probe-data recording fault. Real early-user failure modes: probe glitches, fragile tips, occasional positional drift.
• Support-responsiveness gap — partially closed: Voltera's own product page now lists human support hours, 9 a.m.–5 p.m. ET Monday–Friday (https://www.voltera.io/blog/introducing-voltera-v-one-desktop-pcb-printer?id=69c1ad57769f72dfcee64f08 — observed via search excerpt, crawl 3 days old). Independent owner reports on support quality still absent — treat support quality as UNVERIFIED, but support availability is now documented.
• Scale signal: Voltera reports 200+ V-One units installed across South Korean high schools/universities by 2025; Princeton's space-systems lab and hardware incubator Circuit Launch cited as institutional users — the customer base skews education/institutional, which explains the thin hobbyist owner chatter.
• Pricing (2026-09-21): V-One $3,499.99 base / $4,199.99 with drill (voltera.io, current); Elektor EU €4,949 incl. VAT — out of stock (https://www.elektor.com/products/voltera-v-one-desktop-pcb-printer?_pos=6&_fid=9c74c0ff6&_ss=c); consumables still third-party stocked (reichelt.com: flux €26.86, solder paste ink 2 ml €135.95 — running-cost data).

Used-market: one stale NOVO for-sale listing (2017-era, $2,000 CDN obo, like-new, 5 projects — historic, not a current signal). No current used listings surfaced. Historic $2,199 figures remain stale — do not use.

Source substitutions / gaps: No Facebook/Reddit/Instagram owner content; no raw-quotes file; no quotes invented. Maker verdict remains the decade-long stable consensus (works as advertised; argument is economic). Long-term support-quality reports still absent — biggest remaining gap.
